Rubber Gym Flooring Manufacturer for Commercial Projects

Q: What sizes and thicknesses are available?

UMAX rubber rolls are normally 1 m wide and 10 m long with 3-12 mm thickness. Composite rubber tiles are available in 500 x 500 mm and 1000 x 1000 mm formats with 15-50 mm thickness.

Q: What is the minimum order quantity?

The normal minimum order quantity is 1 square metre. Packing, freight and sample arrangements are confirmed according to the selected format and destination.

Source rubber flooring rolls and composite rubber gym tiles with solid or EPDM-speckled surfaces, low-volume project support and export-ready pallet packing. UMAX helps gym owners, contractors, distributors and fitness brands match the format, thickness and installation method to the actual floor plan.

Plan My Flooring View Specifications

MOQ 1 m² Samples 1-3 days Typical production 7 days 1-year warranty

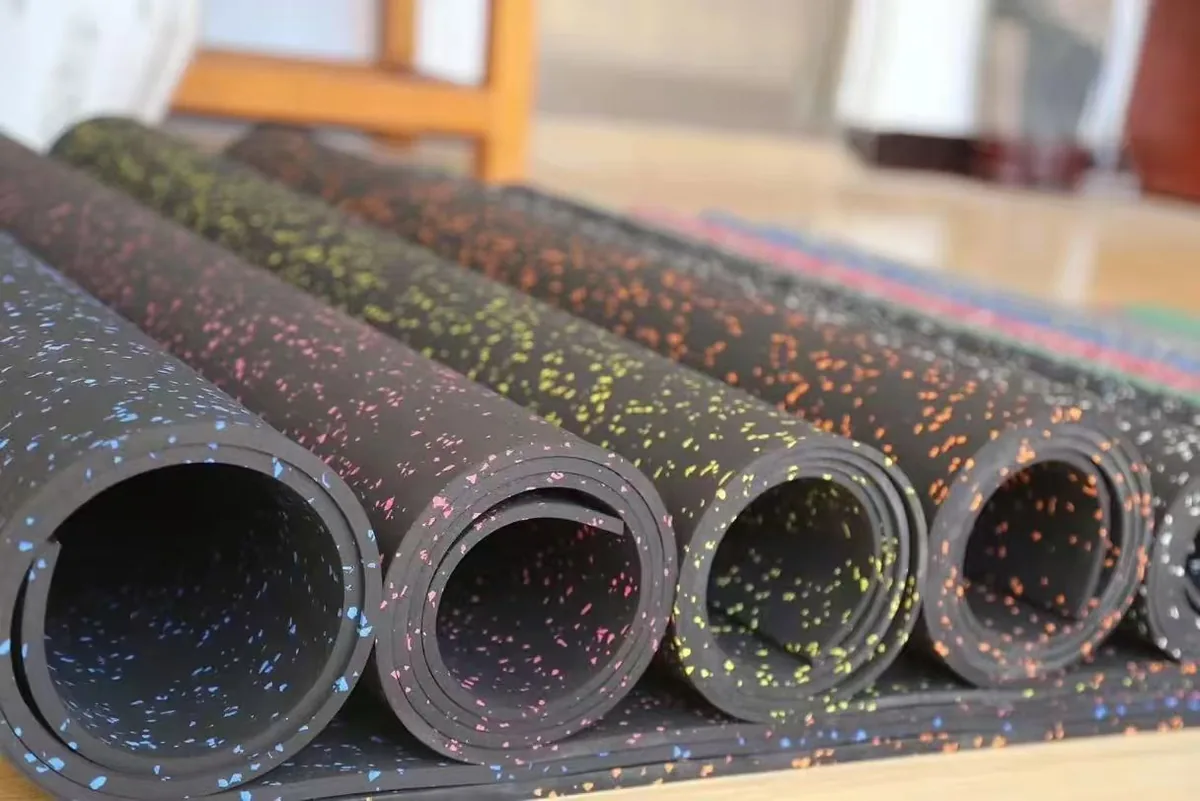

Commercial rubber gym flooring rolls with different EPDM color speckles — Rubber base + EPDM color speckles

Short answer

Choose rubber flooring rolls when a larger gym zone needs fewer seams and a continuous bonded surface. Choose rubber gym tiles when easier handling, lock-connected installation, thicker formats or local replacement matters more. UMAX supplies 3-12 mm rolls and 15-50 mm composite tiles, with solid and EPDM-speckled color directions available for both formats.

Two Commercial Formats

Choose the format around the floor plan

Each format has its own verified dimensions, structure, installation direction and packing logic. Share the training area, subfloor and destination to receive a project-specific recommendation.

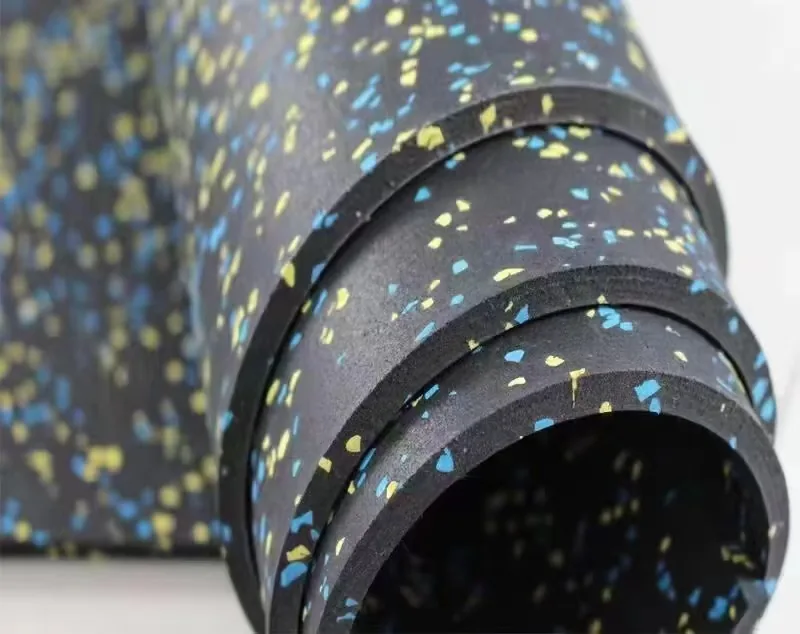

Close-up of commercial rubber flooring roll thickness and EPDM speckled surface

01 / ROLLS

Commercial Rubber Flooring Rolls

A bonded roll format for connected commercial gym areas where fewer seams, consistent layout and efficient coverage are the main priorities.

Standard size1 m wide × 10 m long
Thickness3-12 mm
MaterialRubber base + EPDM color speckles
Density900 kg/m³ standard; higher density available
SurfaceSolid color or speckled directions
InstallationBond with compatible adhesive
MOQ1 m²

View Rubber Flooring Rolls →

02 / TILES

Composite Rubber Gym Tiles

A thicker modular format for commercial gym flooring projects that need manageable units, lock-connected positioning and easier local replacement.

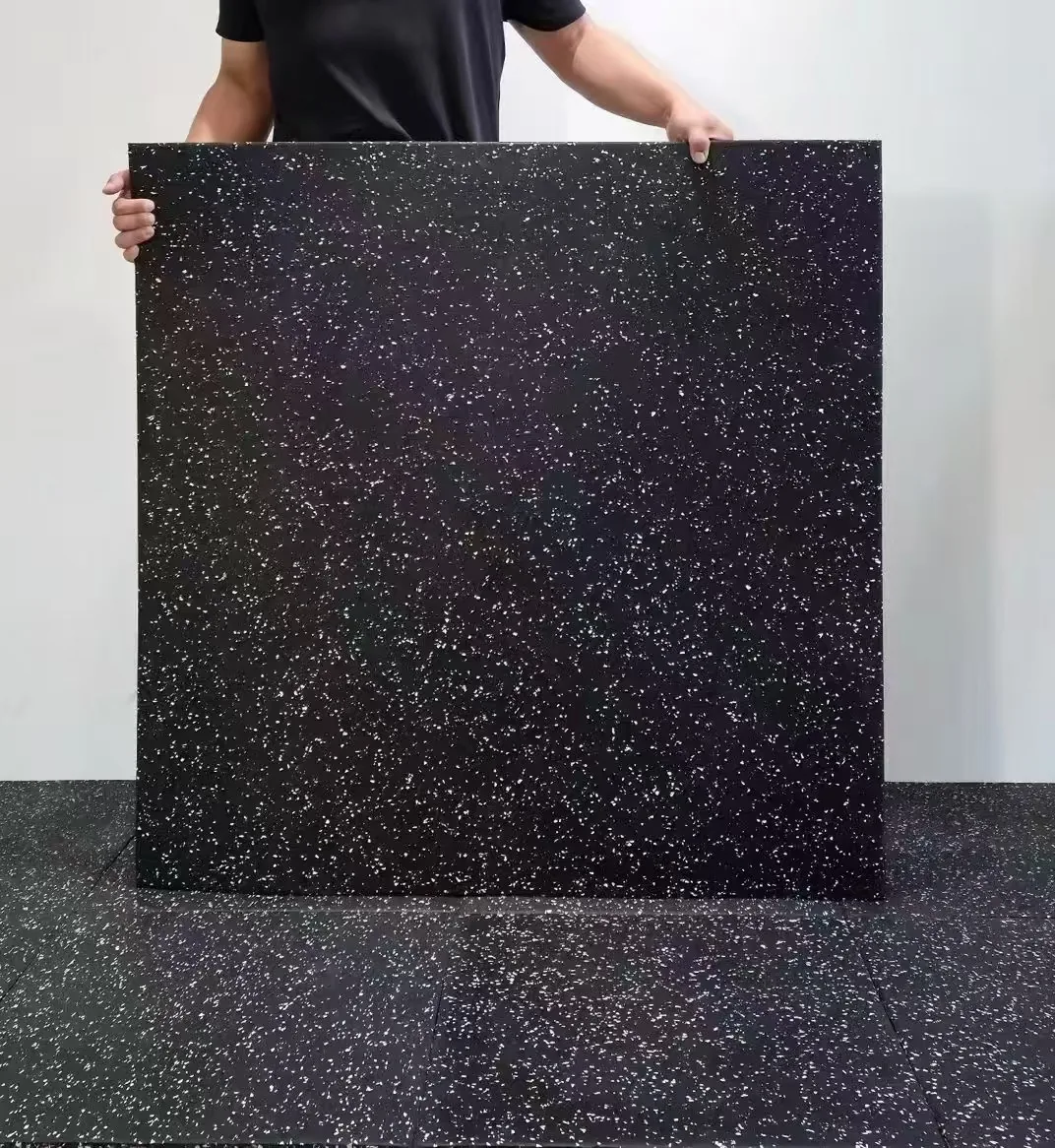

Tile sizes500 × 500 mm / 1000 × 1000 mm
Thickness15-50 mm
ConstructionComposite
Surface layer1 mm EPDM
Base layerRubber
InstallationRequired lock connectors; adhesive optional by project
MOQ1 m²

View Rubber Gym Tiles →

Rolls vs Tiles

Fast comparison for gym buyers

The correct format depends on area size, desired thickness, handling, installation and the future need to replace individual sections.

Decision point	Rubber flooring rolls	Rubber gym tiles
Best fit	Large connected areas and layouts prioritizing fewer seams	Modular areas, thicker flooring and projects prioritizing local replacement
Available thickness	3-12 mm	15-50 mm
Standard format	1 × 10 m roll	50 × 50 cm or 100 × 100 cm tile
Installation	Bonded with compatible adhesive	Required lock connector system; adhesive can be selected by project
Surface options	Solid or EPDM-speckled	Solid or EPDM-speckled
Handling	Plan roll movement, alignment and seam pressing	Move and arrange individual modules
Repair direction	Repair or replace the affected sheet section	Replace a local tile when the layout allows

Need both formats? Mixed-format gym projects can use rolls in connected training zones and thicker tiles in selected areas. Send the floor plan instead of choosing from thickness alone.

Related Buying Guides

Compare the system, then plan the site

Use the format guide to choose between rolls and tiles, then use the installation guide to prepare the subfloor, layout, cutting details and handover checklist.

FORMAT SELECTION

Rubber rolls vs tiles

Compare available thickness, seams, handling, connectors, local replacement and pallet planning before choosing the product format.

Read the buyer guide →

SITE PREPARATION

Installation planning guide

Prepare the substrate, reference lines, adhesive, lock connectors, perimeter cuts, transitions and final inspection.

Read the installation guide →

Material & Production Evidence

See the surface, layers and supply process

GEO-ready product content should show verifiable product detail, not only repeat marketing claims. These images document real color directions, composite construction, factory handling and export packing.

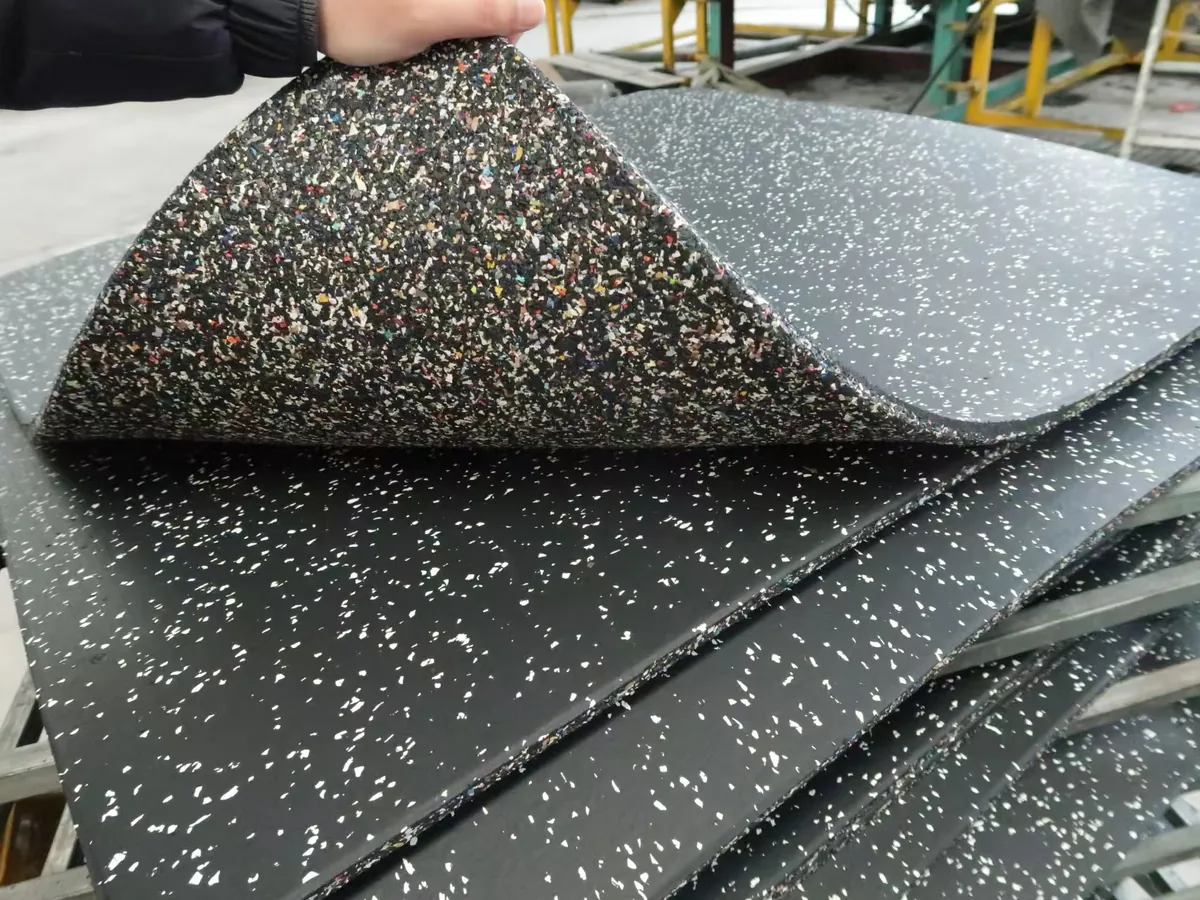

Composite rubber gym tile showing 1 mm EPDM surface layer and rubber base

Composite tile cross-section

The tile combines a 1 mm EPDM surface layer with a thicker rubber base. Final thickness is selected within the 15-50 mm range.

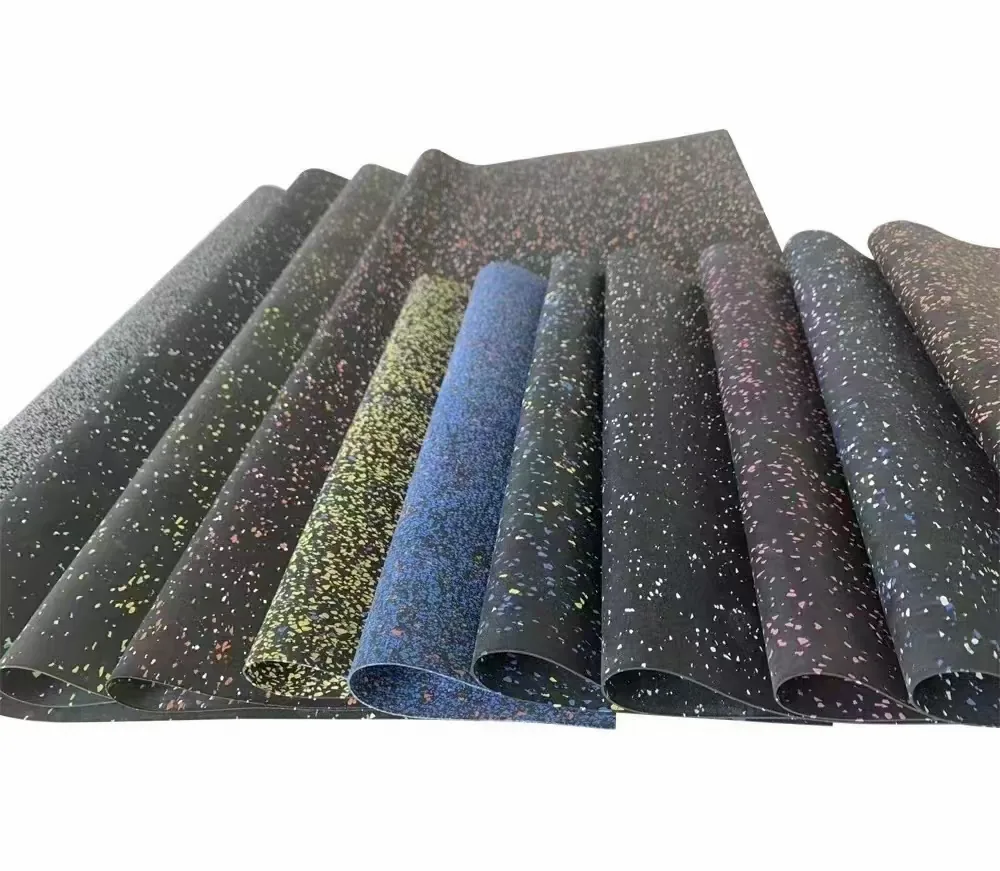

Rubber gym flooring roll color and EPDM speckle options

Roll color directions

Choose from 12 standard solid or speckled color directions, then confirm the selected sample before production.

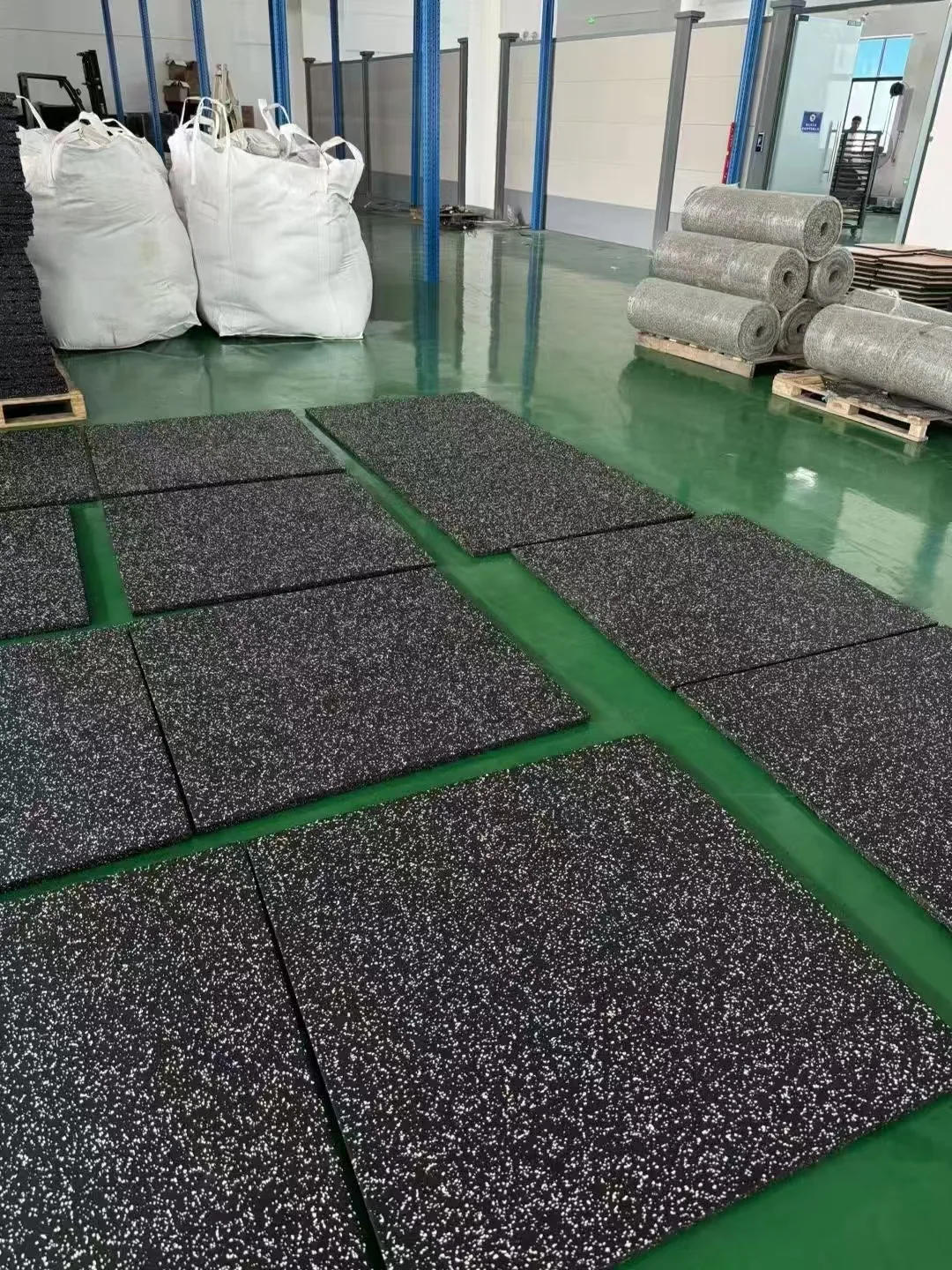

Rubber gym tiles arranged during factory production and inspection

Factory preparation

Tile units are arranged for production handling and inspection before order packing.

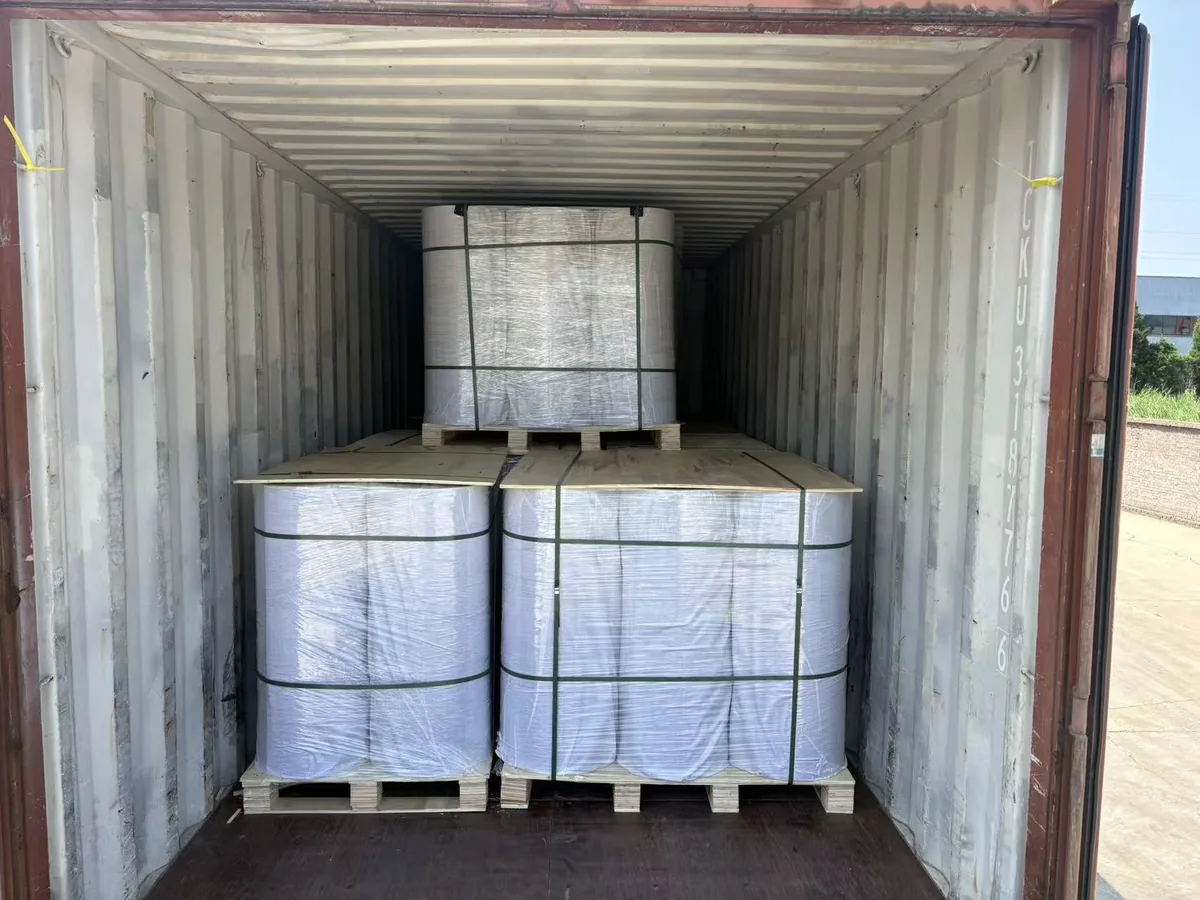

Palletized rubber flooring loaded in a shipping container

Export packing

Palletized packing and container loading are adjusted to product thickness, order quantity and destination.

Required rubber gym tile lock connector system used during modular floor installation

Required tile lock connectors

The tile system uses the illustrated lock connectors during installation to position adjoining modules. Adhesive remains a project-level choice.

Installation Direction

Prepare the subfloor before choosing adhesive

Installation requirements depend on the substrate, perimeter, traffic and selected format. The following guidance is for planning and quotation; the project installer should confirm the final method on site.

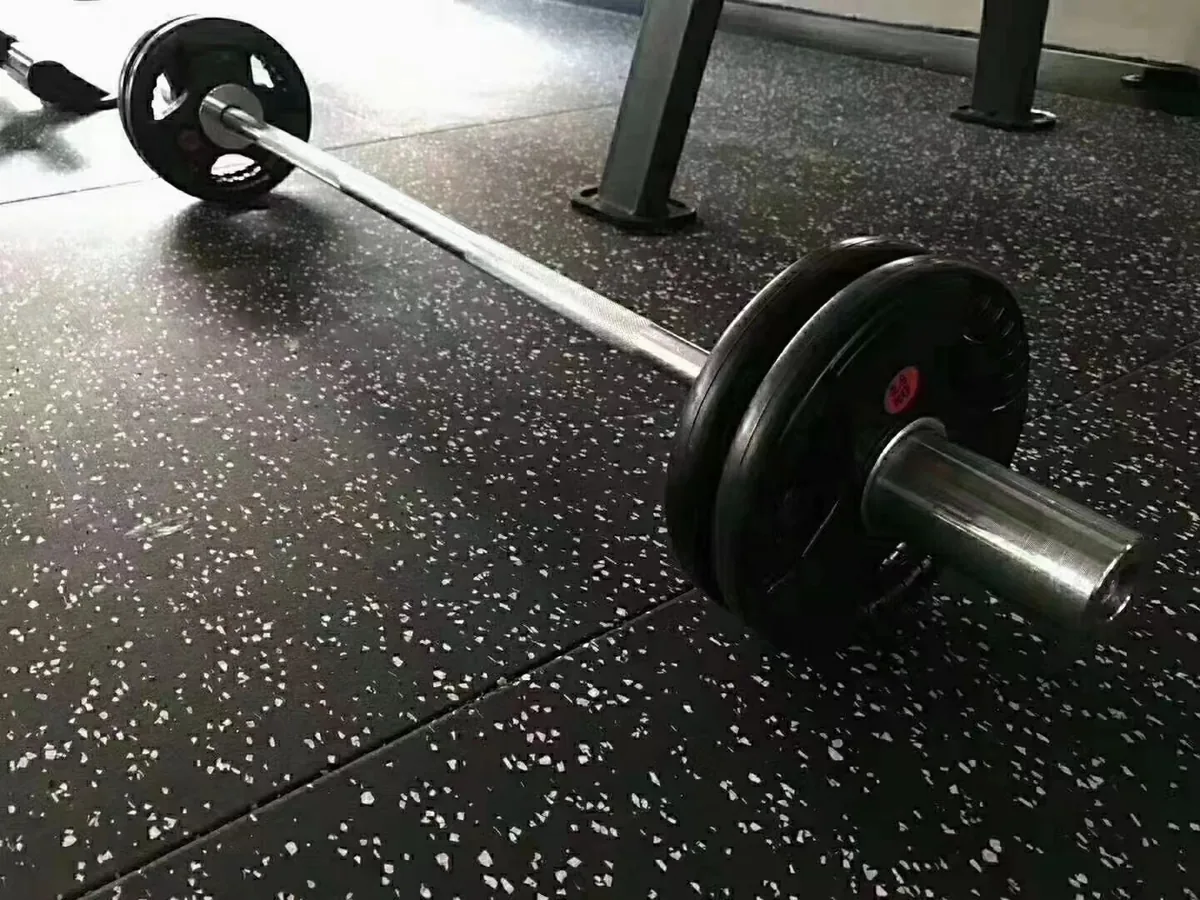

Installed speckled rubber gym tiles in a commercial free-weight area

1. Check the base

The subfloor should be clean, level, dry, sound and free from loose debris, oil, cracks and hollow areas.

2. Bond rubber rolls

Rubber sheets normally require a compatible two-component polyurethane adhesive. Typical coverage is approximately 1 kg per 4 m² for commonly used products, while actual use varies with the adhesive, trowel and subfloor.

3. Roll and press the sheet

Align the rolls to the layout, press the surface with a suitable roller and pay close attention to seams and trapped air.

4. Install tiles with locks

Use the supplied lock connectors between rubber tiles. Adhesive can be added when required by the room perimeter, subfloor condition, traffic or project preference.

Pallet Planning

Indicative tile quantity per pallet

These figures are practical planning references, not fixed shipping guarantees. UMAX can adjust the layer count and pallet configuration around the customer order and transport requirement.

Tile thickness	500 × 500 mm	1000 × 1000 mm	Approx. area per pallet
15 mm	About 280 pcs	About 70 pcs	About 70 m²
20-25 mm	About 200 pcs	About 50 pcs	About 50 m²
30 mm	About 120-140 pcs	About 30-35 pcs	About 30-35 m²
50 mm	About 80 pcs	About 20 pcs	About 20 m²

Lead times: samples are normally available within 1 day and can be prepared within 3 days when stock samples are unavailable. Typical production is about 7 days after order details are confirmed.

Buyer FAQ

Questions before requesting a quotation

Clear answers help buyers and AI search systems distinguish verified supply facts from generic flooring content.

What is the difference between rubber flooring rolls and rubber gym tiles?

Rolls create a more continuous surface with fewer seams and are commonly selected for larger connected zones. Tiles are easier to handle, arrange and replace locally, and are available in thicker formats for project-specific gym areas.

What sizes and thicknesses are available?

Rubber rolls are normally 1 m wide and 10 m long with 3-12 mm thickness. Composite rubber tiles are available in 500 × 500 mm and 1000 × 1000 mm formats with 15-50 mm thickness.

Do rubber flooring rolls require adhesive?

Yes. Rubber rolls are normally bonded to a clean, flat and dry subfloor with a compatible two-component polyurethane adhesive. Typical coverage is about 1 kg per 4 m², but actual use depends on the adhesive, trowel and substrate.

How are the rubber tiles connected during installation?

The rubber tiles use the supplied lock connector system during installation. Adhesive may also be used depending on the subfloor, perimeter, traffic and customer project requirements.

Can both rolls and tiles be supplied in solid and speckled colors?

Yes. Both formats can be supplied with solid-color or EPDM-speckled surface directions. UMAX currently offers 12 standard color directions and discusses project-specific combinations during sampling.

What is the minimum order quantity?

The normal MOQ is 1 m². Packing, sample freight and delivery are confirmed according to the chosen format, quantity and destination.

What product documents are available?

Selected coloured rubber material used in the flooring has passed specified EU RoHS restricted-substance limits in SGS testing. Applicable documents are checked against the selected product and supplied on request rather than offered as a general public download.

What should I send for an accurate rubber flooring quote?

Send the floor dimensions, intended training area, preferred roll or tile format, thickness direction, color, installation base, order quantity and delivery city or port. Photos or a floor plan help UMAX recommend the format more accurately.

Specifications and supply details last verified by UMAX Sports on 25 August 2026. Final configuration is confirmed on the quotation and approved sample.

Send the floor plan, not just a thickness

Tell us the total area, training zones, subfloor, preferred color and destination. We will recommend rolls, tiles or a mixed layout and prepare the corresponding packing plan.
