Visible layer evidence
The top 1 mm EPDM layer forms the selected color direction, while the rubber base builds the remaining total thickness.
Rubber Flooring · Tile Format
Commercial Composite Rubber Gym Tiles Manufacturer
Source 15-50 mm commercial rubber gym tiles for weight rooms, fitness clubs, training studios and distributor projects. UMAX supplies 50 × 50 cm and 100 × 100 cm composite tiles with a 1 mm EPDM surface, rubber base and required lock connector system.
50 × 50 / 100 × 100 cmMOQ 1 m²Samples 1-3 daysTypical production 7 days
Short answer
Composite rubber gym tiles are a practical choice when a commercial project needs thicker 15-50 mm flooring, modular handling and easier local replacement. UMAX tiles use a 1 mm EPDM surface over a rubber base and are supplied with required lock connectors. Adhesive can be added or omitted according to the project conditions.
Verified Product Card
Composite rubber gym tile specifications
Use these confirmed standard facts for project comparison and RFQ preparation. Final size, thickness, color and packing are recorded on the quotation.
| Tile sizes | 500 × 500 mm and 1000 × 1000 mm |
| Available thickness | 15 mm to 50 mm |
| Construction | Composite tile |
| Surface layer | 1 mm EPDM |
| Base layer | Rubber |
| Edge and connection | Straight edge with required lock connectors |
| Adhesive | Optional according to project conditions and customer choice |
| Color direction | 12 standard solid-color or EPDM-speckled directions |
| Minimum order | Normally 1 m² |
| Sample and production | Samples 1-3 days; typical production about 7 days |
| Packing and warranty | Pallet packing; 1-year warranty |
Composite Construction
1 mm EPDM surface over a rubber base
The product is not described as a single-layer tile. The visible surface and supporting base have distinct roles within the composite construction.

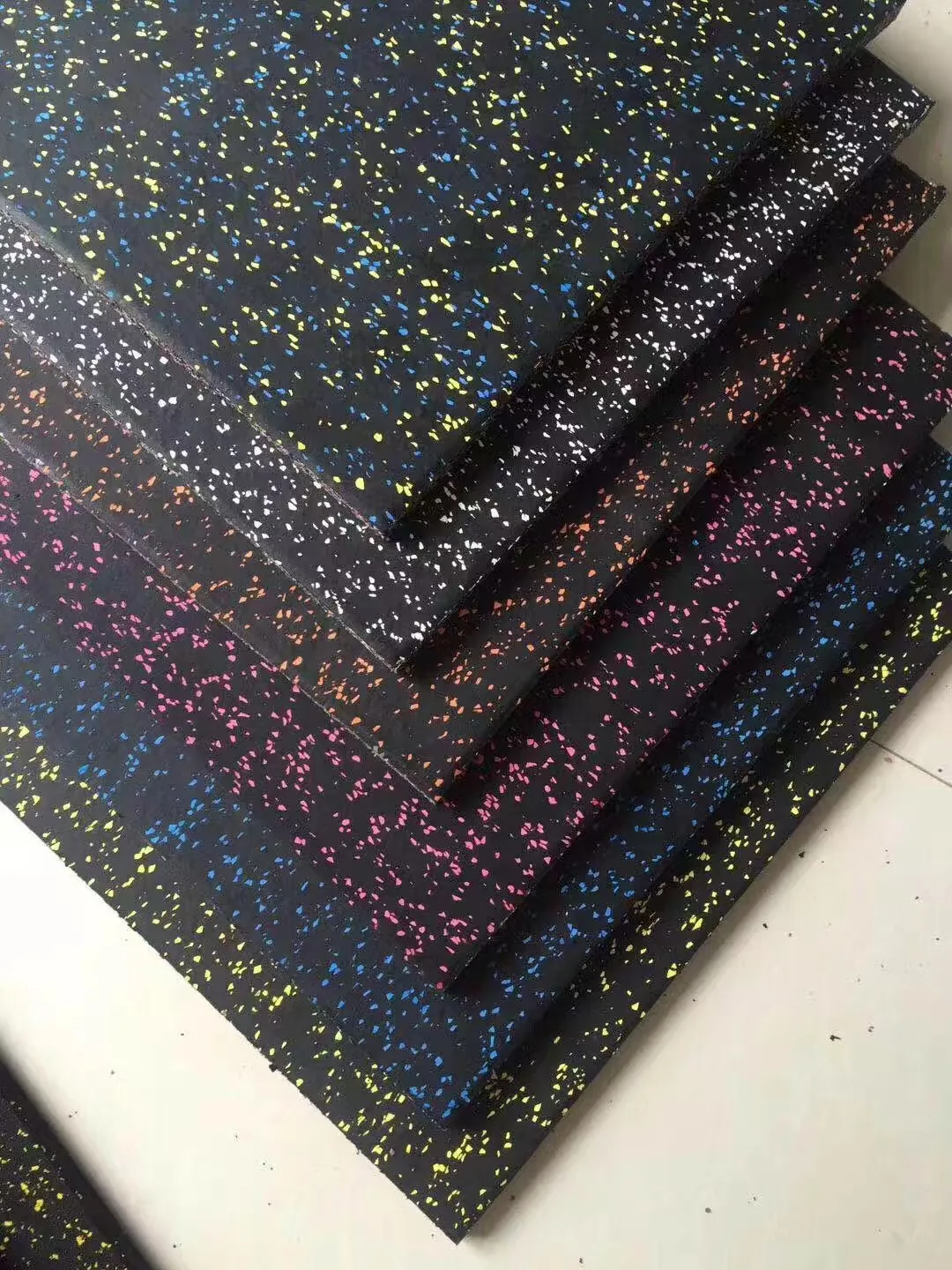

Color sampling
Review 12 standard solid or speckled directions and confirm the approved surface sample before production.
Factory handling
Tile units are arranged for production handling and visual review before pallet packing.
Installation System
Use the supplied lock connectors
The locks are required for the UMAX tile system shown here. Adhesive remains a separate decision for the customer and project installer.
1. Prepare the base
Confirm that the subfloor is clean, level, dry, sound and free from loose material or oil.
2. Set the layout
Plan the starting line, perimeter cuts and joint direction before positioning full tiles.
3. Install every lock
Use the supplied lock connectors between adjoining tile units. The connectors are required even when the project is installed without glue.
4. Decide on adhesive separately
Adhesive can be omitted or added according to the room perimeter, base condition, traffic, installer judgement and customer preference.
Pallet Planning
Indicative tile quantity per pallet
Quantities are flexible planning references. UMAX can adjust layer count and pallet height according to customer requirements and transport limits.
| Tile thickness | 500 × 500 mm | 1000 × 1000 mm | Approx. area |
|---|---|---|---|
| 15 mm | About 280 pcs | About 70 pcs | About 70 m² |
| 20-25 mm | About 200 pcs | About 50 pcs | About 50 m² |
| 30 mm | About 120-140 pcs | About 30-35 pcs | About 30-35 m² |
| 50 mm | About 80 pcs | About 20 pcs | About 20 m² |
Packing note: the count follows tile size, thickness and the final pallet height, normally around 1-1.2 m. The packing list and actual pallet configuration control the shipment.
Related Buying Guides
Plan tile selection and installation
Compare composite tiles with rolls, then prepare the grid, connectors, perimeter cuts and site conditions.
COMPARE FORMATS
Tiles vs rolls
Review thickness, joints, handling, local replacement and packing before choosing the modular format.
Read the comparison →PREPARE THE SITE
Tile installation guide
Plan the reference grid, required lock connectors, optional adhesive, cuts, transitions and handover.
Read the installation guide →Project Fit
When composite rubber tiles make sense
Tiles are not automatically better because they are thicker. Match the format to handling, layout, maintenance and the selected gym zone.
BEST FOR
Modular commercial floor plans
The tile format supports thicker flooring, manageable units and the option to replace a local piece when the surrounding layout allows.
- Thickness15-50 mm
- HandlingIndividual modular units
- MaintenanceLocal replacement direction
- InstallationRequired lock connector system
COMPARE FIRST
Large connected zones needing fewer seams
Rubber flooring rolls may be more suitable when the room needs a thinner 3-12 mm bonded surface and fewer joints across a connected area.
- Surface priorityFewer long seams
- Available thickness3-12 mm roll range
- InstallationBonded continuous sheets
- AlternativeView rubber flooring rolls
RFQ Checklist
What to send for an accurate tile quotation
Floor size and installation conditions are more useful than asking for thickness alone.
Send these details: floor dimensions, total area, training use, 50 × 50 cm or 100 × 100 cm preference, requested thickness, solid or speckled color, subfloor, whether adhesive is planned, quantity, destination and any floor plan or room photos. UMAX will confirm tile count, lock quantity, sampling and pallet arrangement.
Buyer FAQ
Composite rubber gym tile questions
Answers below use confirmed UMAX product and supply information.
What sizes and thicknesses are available?
Tiles are available in 500 × 500 mm and 1000 × 1000 mm sizes with total thickness from 15 mm to 50 mm.
What is the composite tile structure?
The confirmed structure uses a 1 mm EPDM surface layer over a thicker rubber base.
Are the lock connectors optional?
No. The supplied lock connectors are required for this tile system. Adhesive is the optional part and is decided separately for the project.
Can the tiles be installed without adhesive?
Yes, when the project conditions allow. The installer should decide after reviewing the subfloor, perimeter, traffic and room use, while still installing all required locks.
Are solid and speckled tile colors both available?
Yes. Both solid-color and EPDM-speckled surface directions are available, with 12 standard color directions currently offered.
What is the MOQ and normal lead time?
Normal MOQ is 1 m². Samples are normally ready in 1 day and within 3 days when preparation is required. Typical production is about 7 days.
What product documents can be supplied?
Selected colored rubber material used in the flooring has passed specified EU RoHS restricted-substance limits in SGS testing. Applicable documents are matched to the selected supply and provided on request, not presented as a general fire, VOC or odor certification.
Tile specifications last verified by UMAX Sports on 25 August 2026. Final configuration is confirmed on the quotation and approved sample.
Request a rubber tile plan
Send the floor dimensions, use, tile size, thickness, color and destination. UMAX will confirm tile count, required locks, sample timing and pallet packing.
